主板04 VHD

更新:2020-12-05点击:

    1. General Description【概述】

    309J22-32 is an integration LED driver and monitor main board(VGA+HDMI+DP +USB+OD).

    309J22-32 是一款集 LED 恒流板和显示器主板(VGA+HDMI+DP+ +USB+OD)于一体的二合一显示器

    驱动板。

    309J22-32‘s fits to 18.5”-32” LED backlight TFT panel.

    该驱动板支持 18.5 寸到 32 寸 LED 背光的 TFT 屏。

    309J22-32 ‘s main IC is TSUMOP38CMT9-1.

    该方案的主芯片为 TSUMOP38CMT9-1.

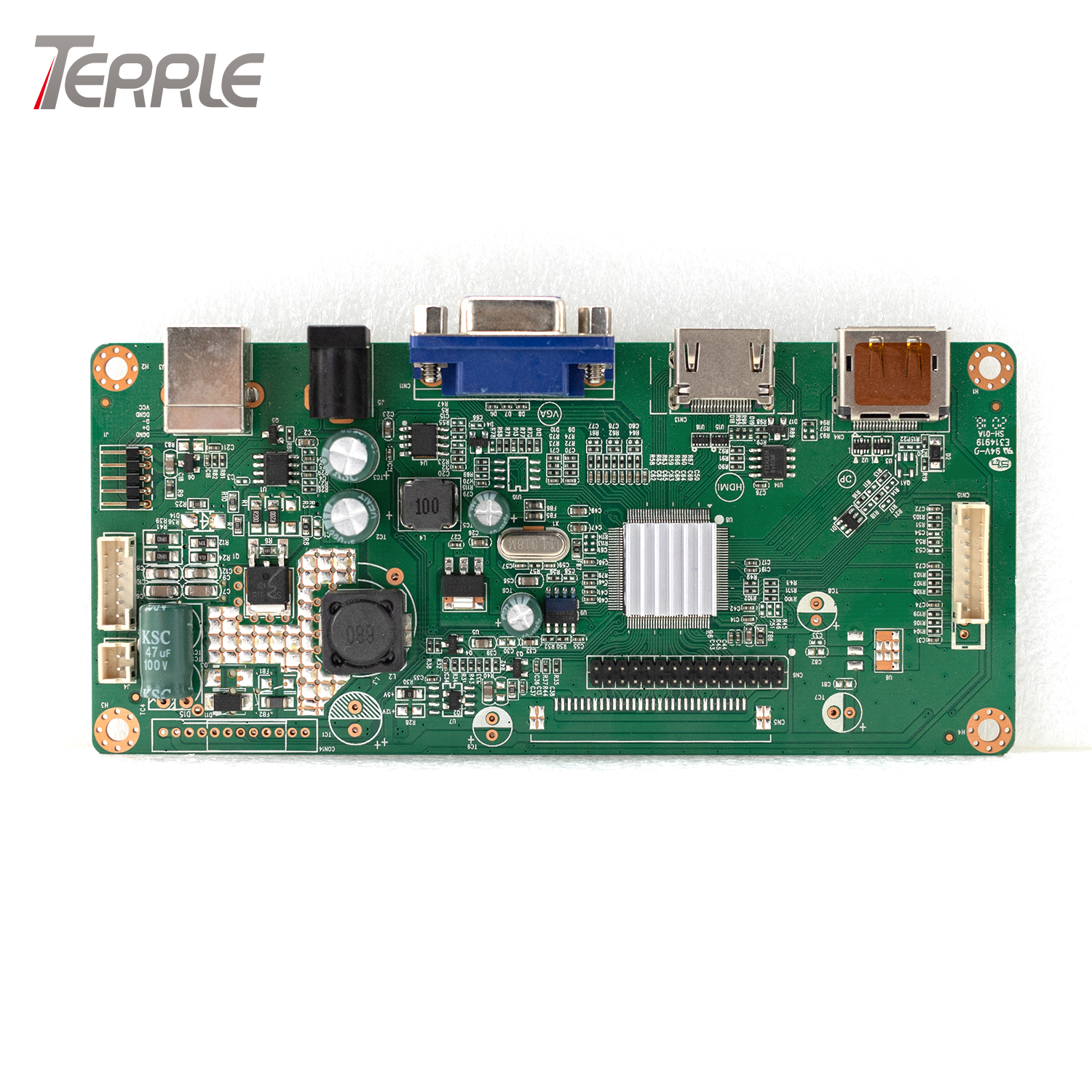

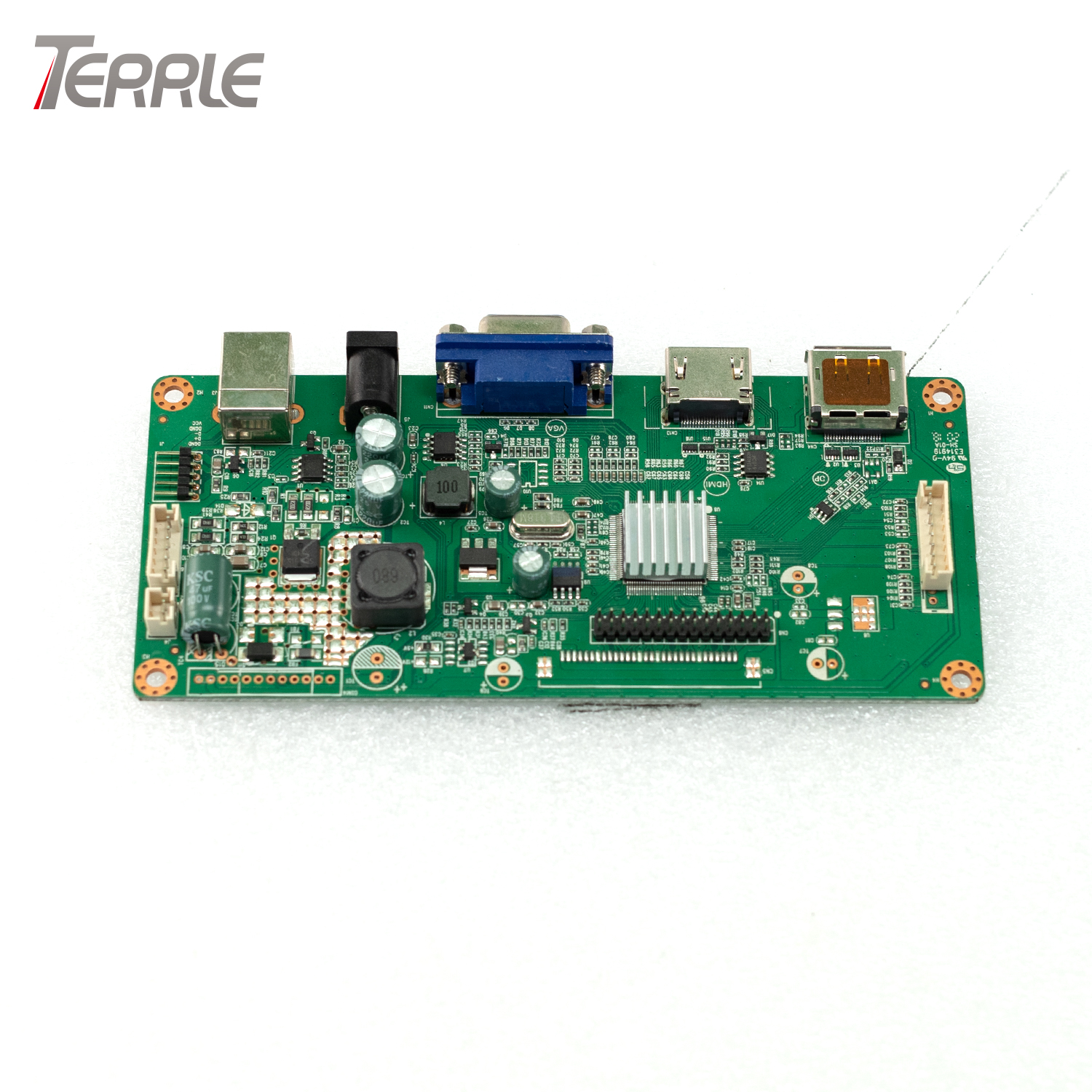

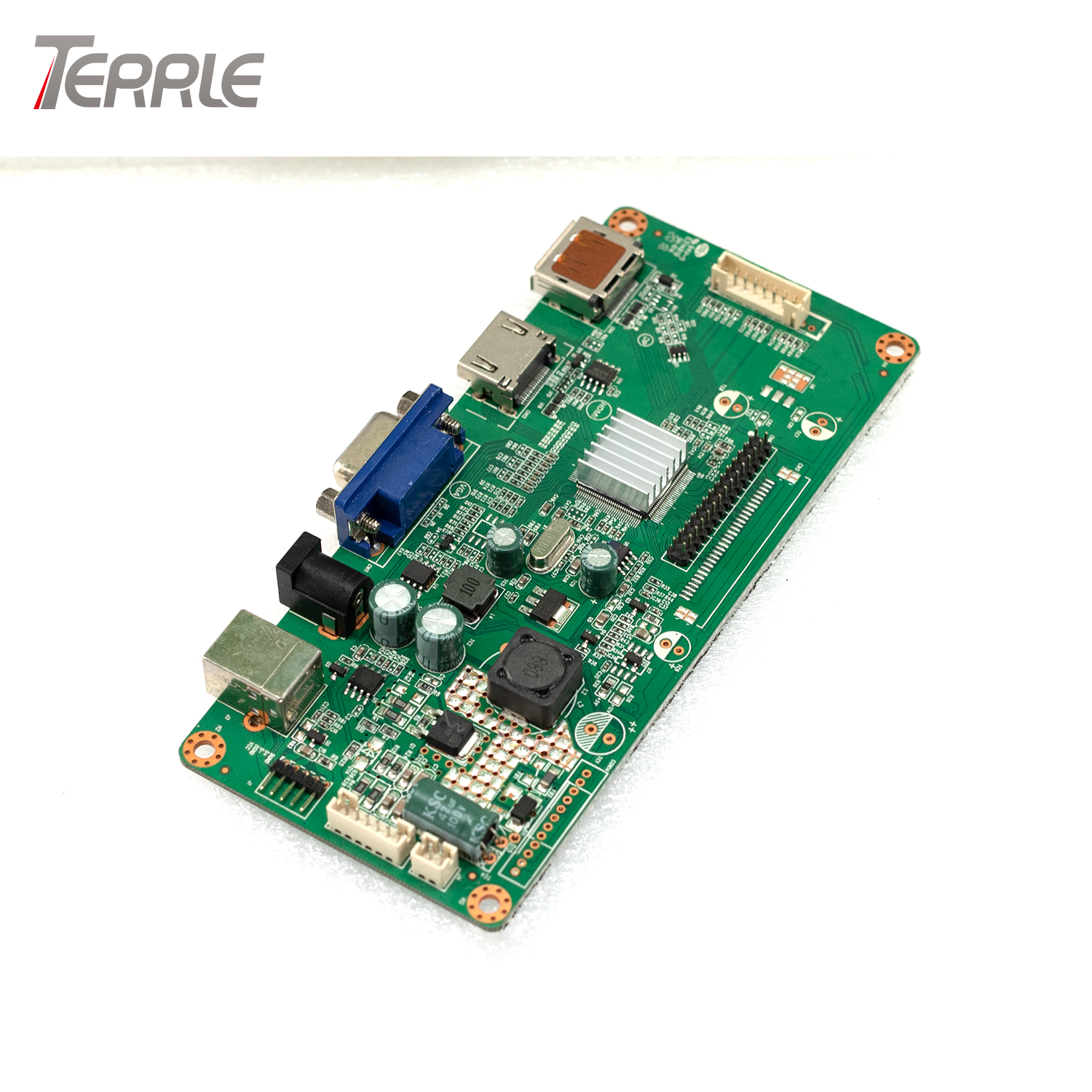

    2. Function Layout【产品外观图】

    Pictures are for references only,specific to prevail in kind.

    LVDS

    LED

    Backlight Key-Board

    DP HDMI VGA POWER USB

    ~ 5 ~

    3. Features【特性说明】

    Chipset【主芯片】 TSUMOP38CMT9-1

    OSD Language

    【OSD 语言】 English, Chinese, Multi-Language, 英文,中文,多国语言

    Panel【面板】

    Panel Type 【面板类型】 TFT LCD With LED Backlight

    Interface 【接口】 Dual/single LVDS Interface

    Resolution 【最高分辨率】 1920*1200

    Video Input

    【视频输入】

    VGA In

    Signal 【信号】 Anglog RGB(0.7Vpp)

    Connector【连接器】 15Pin D-Sub

    HDMI

    In

    Signal 【信号】 T.M.D.S

    Connector【连接器】 19Pin HDMI

    DP IN

    Signal 【信号】 T.M.D.S

    Connector【连接器】 20Pin DP

    Horizontal frequency【行频】 31.5-80.0KHz

    Vertical frequency 【场频】 55-75Hz

    Video Mode 【视频模式】 VGA,SVGA,XGA,SXGA,WSXGA+,WXGA,

    WXGA+,HD+,FHD

    Resolution 【分辨率】 Up to 1920*1200

    Video Output

    【视频输出】

    Signal 【信号】 R,G,B 8bit LVDS Output

    Connector 【连接器】 30Pin 2.0mm Pitch

    Color Temp 【色温】 9300/6500/7500/Srgb/User-defined

    Audio Input

    【音频输入】

    Signal 【信号】 PC-RGB

    Connector【连接器】 5Pin Audio

    Phone Output

    【耳机输出】

    Signal 【信号】 Phone Output

    Connector【连接器】 5Pin Audio

    Power【电源】

    DC input Requirement【额定】 12V(+0.6V)/3.0A

    Panel Power Input【屏供电电压】 +3.3Vdc/+5Vdc/+12Vdc (可三选一)

    Power OFF Model【关机模式】 <0.5W

    Power Manage 【电源管理】 Yes

    LED Drive

    【LED 驱动】

    Typical Output Current

    【典型输出电流】 320mA ( Adj Duty=100%,RL=panel)

    Max Output Voltage

    【最大输出电压】 55V ( Adj Duty=100%,RL=panel)

    PCB

    Specification

    【PCB 板规格】

    PCB Layer 【PCB 层】 Two Layers

    PCB Material 【PCB 材料】 FR-4

    PCB Thickness 【PCB 厚度】 1.2mm

    PCB Dimension

    【PCB 尺寸】 L*W*H 【长*宽*厚】 143*64*1.2mm

    Component Foot

    【元件引脚】

    Bottom Layer Height【底层引

    脚高度】 <3.0mm

    Key Function

    【按健功能】 Power Menu Right Left AUTO (Optional)

    309J22-32-SPECIFICAFATION

    ~ 8 ~

    5. Interface Definition【接口定义】

    ●CN8 (DC-012DH/14mm):DC Input 【DC 电源输入】

    NO.【序号】 SYMBOL【符号】 DESCRIPTION【描述】 Fig.【示图】

    1 +12V +12V【供电线】

    2 GND Earth wire【地线】

    3 GND Earth wire【地线】

    ●CN18 (15PIN/D-sub MALE Connector):D-sub 30mm【VGA 接口】

    NO.【序号】 SYMBOL【符号】 DESCRIPTION【描述】 Fig.【示图】

    1 R Red Video

    2 G Green Video

    3 B Blue Video

    4 NC NC

    5 NC NC

    6 Gr Red Ground

    7 Gg Green Ground

    8 Gb BLUE Ground

    9 NC NC

    10 GND Ground

    11 NC NC

    12 SDA DDC-Serial Data

    13 H H.sync

    14 V V.sync

    15 SCL DDC-Serial Clock


    ●CN2 (19PIN/HDMI Connector):HDMI 15mm【HDMI 接口】

    NO.【序号】 SYMBOL【符号】 NO.【序号】 SYMBOL【符号】 Fig.【示图】

    1 TMDS data2+ 13 CEC

    2 TMDS data2 shield 14 NC

    3 TMDS data2- 15 SCL

    4 TMDS data1+ 16 SDA

    5 TMDS data1 shield 17 DDC/CEC Ground

    6 TMDS data1- 18 +5V Power

    7 TMDS data0+ 19 Hot Plug Detect

    8 TMDS data0 shield

    9 TMDS data0-

    10 TMDS clock+

    11 TMDS clock shield

    12 TMDS clock-

    ~ 9 ~

    ●CN19 (20PIN/DP Connector):【DP 接口】

    NO.【序号】 SYMBOL【符号】 NO.【序号】 SYMBOL【符号】 Fig.【示图】

    1 DP_3.3V 13 GND

    2 GND 14 ML_LANE1_N

    3 HDP 15 ML_LANE2_P

    4 AUX_CH_N 16 GND

    5 GND 17 ML_LANE2_N

    6 AUX_CH_P 18 ML_LANE3_P

    7 GND 19 GND

    8 GND 20 ML_LANE3_N

    9 ML_LANEO_P

    10 GND

    11 ML_LANEO_N

    12 ML_LANE1_P

    ●CN7(10PIN/PH2.0/180◦

    ):Key-Board Connector 【按键板接口】

    NO.【序号】 SYMBOL【符号】 DESCRIPTION【描述】

    1 POWER Power ON/OFF【电源开关】

    2 LEDR LED-R【接 LED-红灯】

    3 LEDG LED-G【接 LED-绿灯】

    4 GND GND【地线】

    5 K2/LEFT LEFT【左键】

    6 RIGHT RIGHT KEY【右键】

    7 AUTO AUTO KEY【退出键】

    8 MENU MENU KEY【菜单键】

    9 UP UP KEY【上键】

    10 DOWN/K1 DOWN KEY【下键】

    11 3.3V NC


    ●CN1 (4PIN/PH2.0/180◦

    ):Speaker Connector 【喇叭接口】

    NO.【序号】 SYMBOL【符号】 DESCRIPTION【描述】

    1 LOUT- Audio Left Channel Output-【左声道负输出】

    2 LOUT+ Audio Left Channel Output+【左声道正输出】

    3 ROUT+ Audio Right Channel Output+【右声道正输出】

    4 ROUT- Audio Right Channel Output-【右声道负输出】


    ●CN12 (2PIN/PH2.0/90◦

    ):LED Backlight Drive Connector 【LED 背光驱动接口】

    NO.【序号】 SYMBOL【符号】 DESCRIPTION【描述】

    1 LED- LED Cathode【LED 负极】

    2 LED+ LED Anode【LED 正极】

    深圳市鑫科显电子有限公司

    Shenzhen City Xin Electronics Co.,. 309J22-32-SPECIFICAFATION

    ~ 10 ~


    ●CN14(6PIN/PH2.0/90◦

    ):LED Backlight Drive Connector 【LED 背光驱动接口】

    NO.【序号】 SYMBOL【符号】 DESCRIPTION【描述】

    1 LED- LED Cathode【LED 负极】

    2 LED- LED Cathode【LED 负极】

    3 LED+ LED Anode【LED 正极】

    4 LED+ LED Anode【LED 正极】

    5 LED- LED Cathode【LED 负极】

    6 LED- LED Cathode【LED 负极】

    ●CN4(30PIN/2.0mm):Panel interface Connector 【面板接口】

    NO.【序号】 SYMBOL【符号】 NO.【序号】 SYMBOL【符号】

    1 PANEL_VCC 16 RXOC+

    2 PANEL_VCC 17 RXO3-

    3 PANEL_VCC 18 RXO3+

    4 GND 19 RXE0-

    5 GND 20 RXE0+

    6 GND 21 RXE1-

    7 RXO0- 22 RXE1+

    8 RXO0+ 23 RXE2-

    9 RXO1- 24 RXE2+

    10 RXO1+ 25 GND

    11 RXO2- 26 GND

    12 RXO2+ 27 RXEC13 GND 28 RXEC+

    14 GND 29 RXE3-

    15 RXOC- 30 RXE3+

    . 309J22-32-SPECIFICAFATION

    ~ 11 ~

    6. Electrical Characteristics【电气特性】

    6.1 Input electrical specifications【输入特性】

    Input

    【输入】

    Minimum

    【最小值】

    Nominal

    【正常值】

    Rating

    【范围】

    Maximum

    【最大值】

    Unit

    【单位】

    Voltage【电压】 11.4 12V/19V 11.4-22 22.5 Vdc

    Current【电流】 -- -- -- 3.0 A


    6.2 LED drive power output electrical specifications【LED 供电输出特性】

    Parameter

    【参数】

    Symbol

    【符号】

    MIN

    【最小】

    TPY.

    【典型】

    MAX

    【最大】

    Unit

    【单位】

    Remark

    【备注】

    LED Current

    【LED 电流】

    IL 10 320 480 mA

    Vadj Duty=100%,

    RL=panel

    LED Array

    VOLTAGE

    【LED 电压】

    VL 35 45 60 Vrms

    Vadj Duty=100%,

    RL=panel

    Over

    Voltage【过

    压保护点】

    OVP 65 -- -- V

    备注:此板卡适应 PANEL 1920x1080 分辨率以下型号

    超过最大电流 320MA 下单时请另行说明

    7. Configuration & General Precautions【使用注意事项】

    •Relative humidity:≦80%

    •相对湿度:≦80%

    •Storage temperature:-10~60℃

    •存储温度:-10~60℃

    •Operation temperature:0~40℃

    •使用温度:0~40℃

    •Protect the board from static electricity in case of damage to the IC.

    •请使板卡远离静电

    •keep the board away from connectors when it is working.

    •请确保板卡工作时远离导体

    •Don’t push or pull the connectors when board ix working.

    •板卡工作时请不要按压和扭曲。

    •Don’t Press, distort or disassemble the board.

    •请不要拆解板卡。

    •Don’t wire in the board to power supply before panel is correctly connected.

    •在未正确接好驱动屏线前请不要通电。

    309J22-32-SPECIFICAFATION

    ~ 12 ~

    8. Mount Precautions【组装注意事项】

    • For Safety Issue, please keep 4.0mm at least from the metal parts of the system to the

    converter. Or put a high-voltage insulator between the converter and the metal parts to

    avoid the situation of Hi-POT failure or arcing---etc.

    • 基于安全问题,请在组装 converter 时,确保 converter 和系统金属材料间保持至少 4mm 以上的

    距离,或是使用足够绝缘等级(3KV)的绝缘材料隔离,以避免高压放电的产生

    • Don’t twist , deform , drop or knock the Drive board during assembly.

    • 请于组装驱动板时,确实避免扭曲,弯折,大力碰撞及掉落产生

    • Guarantee to offer ESD shield bag to protect the product from electrostatic or magnetic

    interference during delivery .but due to the converter is usually designed without the case.

    please take care about ESD at anytime .

    • 在产品交付的整个过程中均保证采用 ESD 屏蔽袋包装处理. 然而,因为无外壳保护, 请在任何时

    候务必注意防静电处理。
